Barcode Value File

Save barcode value in a individual file.  Report file contains raw data representing value of barcode, either ASCII or binary. This report is an easiest way to obtain and process binary barcode value in the workflow since no data extraction or format conversion is needed.

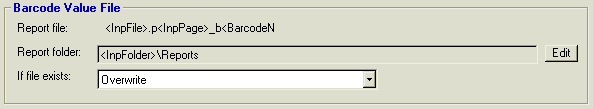

Report file

The report file name is fixed.  Its format is <InpFile>.p<InpPage>_b<BarcodeNmb>.dat
Where:

<InpFile> - name of the input file

<InpPage> - page of input file (starting with 1)

<BarcodeNmb> -barcode number on a page (starting with 1)

For example: sample.tif.p3_b2.dat  contains value of barcode #2 on the third page of file sample.tif

Note:  Do NOT assume that the "first" barcode is the top most, or left most barcode.  Do NOT assume that barcodes will be numbered in the same order on other pages

Report Folder Name

To specify location of the report click the Edit button to open the folder name editor dialog

If file exists

Specify action of Barcode Director if report file already exists. Options:

Overwrite.   Overwrites the existing file

Create unique file name.  String with format _NNNN_ is inserted in file name before extension.
For example sample.tif.p3_b2.dat becomes sample.tif.p3_b2._0001_.dat

Report an exception.  Report is not created.  Exceptions is generated and recorded in XML Results.

---
