Footer placement

Specifying footer placement in any barcode or text commands creates a clear area at the bottom of the output page.   The height of the footer area is the minimum size that accommodates all the footer elements.  The content of the original page is scaled down to fit between top of the footer and top of the page (or bottom of the header if present).

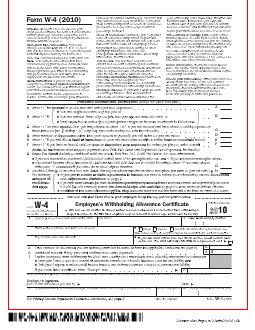

Footer placement example	Header and footer placement example

Syntax

To create a footer region and use the implicit alignment, bottomleft:bottomleft with default margins.

barcode target=footer, BarcodeValue

To create a footer region and use the implicit bottomleft:bottomleft alignment with specified margins.  You can also change them with the margins command

barcode target=footer ,left=LeftMargin [,bottom=TopMargin], BarcodeValue

To create a footer region and use implicit bottomright:bottomright alignment with specified margins

barcode target=footer, right=RightMargin [, bottom=TopMargin], BarcodeValue

To create a footer region and use explicit alignment with the default margins or the established margins set by the margins command

barcode target=footer:TargetAP[:ElementAP], BarcodeValue

 To create a footer region and use explicit alignment with specified margins

barcode target=footer[:TargetAP[:ElementAP]]:AllMargins, BarcodeValue

barcode target=footer[:TargetAP[:ElementAP]]:HorzlMargins:VertMargins, BarcodeValue

barcode target=footer[:TargetAP[:ElementAP]]:LeftMargin:TopMargin:RightMargin:BottomMargin, BarcodeValue

Parameters

LeftMargin

 Left margin

TopMargin

Top margin.

RightMargin

Right margin

BottomMargin

Bottom margin

AllMargins

 Left, bottom, right, bottom margins

HorzMargins

 Left and right margins.

VertMargins

 Top and bottom margins.

TargetAP

Target alignment point.  Only bottomleft, bottomcenter and bottomright values are valid.
Default value is bottomleft

ElementAP

 Element alignment point.  Default value is the same as TargetAP

Notes

• TopMargin value is not used for footer placement

• If header placement is specified on the page, original content is scaled to fit between footer and header.

Examples

Place barcode with default bottomleft:bottomleft alignment. Use default margins.

barcode target=footer, ${DocumentID}${page:00}${pages:00}

Place text in the bottom center of  the footer.

text target=footer:tc:tc, "This is my Document"

Place text in the bottom right of the footer. Explicitly specify margins.

text target=footer:tr:tr, bottom=0.1, right=0.2, "Page ${page} of $pages}
