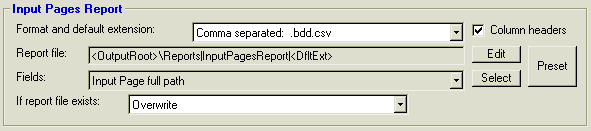

Input Pages Report

The Input Pages report contains data associated with each input page of Document mode session.

Format and default extension.

The report can be produced in the following formats



Format	Extension	Notes
Comma Separated	.bdd.csv	Check the adjacent box to include a 1st row with column headers in the report
Tab Separated	.bdd.txt	Check the adjacent box to include a 1st row with column headers in the report
XML	.bdd.xml	Column headers used as XML attribute names



Column header

Enable/disable presence of Column header in Comma Separated and Tab Separated formats.  Names of columns in the header are fixed.   Examine contents of the file to identify names of the columns.

Report File

To specify location of the report click the Edit button to open the File Name editor dialog.

Fields

To specifies type and order of data to be present in the report click the Select button to open Select Fields dialog box.    Click the Preset button to select default set of fields.

f report file exists

Specify action of Barcode Director if report file already exists. Options:

Overwrite.   Overwrites the existing file

Append.  Report data of the report are merged or appended at the end of existing report file.

Create unique file name.  String with format _NNNN_ is inserted in file name before extension.
For example MyReport.bdd.csv becomes MyReport.bdd._0001_.csv

Report an exception.  Report is not created.  Exceptions is generated and recorded in XML Results.
