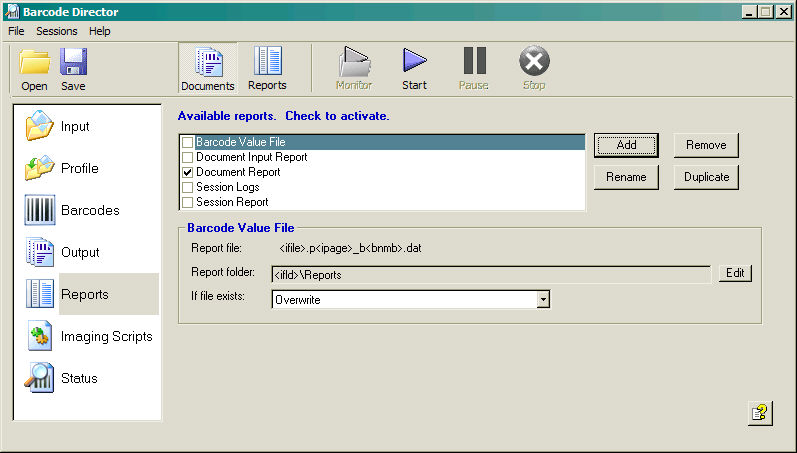

Panel defines report files generated during session. Available report types depend if program is in Documents mode (as shown below) or in Reports mode.
Available Reports
List reports which type and parameters defined by the user. Only reports with a check mark to the left are produced during session.
Report Management
Reports can be:
Created by clicking Add button and specifying report name and parameters.
Deleted by clicking Remove button. Selected report is deleted.
Renamed by clicking Rename button. Selected report is renamed.
Duplicated
by clicking Duplicate
button. Selected report is duplicated.
User is prompted for new report name. Selected report parameters
are copied to the new report.
Activated by checking box next to report name. Only active reports are generated during session.
Deactivated by unchecking box next to report name.
Selected by clicking on report name in Available Reports list. Parameters of report are shown bellow the list and can be edited
Report Parameters
Selected report parameters are displayed under in Available Reports list. To see further details of each report, click on the report name below
- Session Logs
- Session Report
- Barcode Value File
- Input Pages Report (Documents mode only)
- Output Pages Report (Documents mode only)
